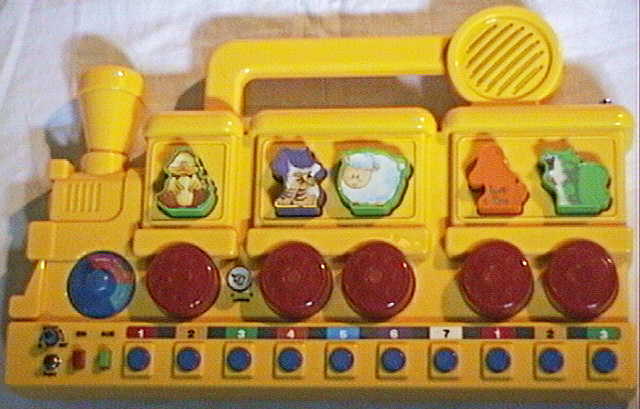

This yellow, train- shaped sound toy made in Singapore plays very unique animal voices and steam locomotive sounds using a Texas Instruments CPU that contains a very gritty sounding LPC (speech synthesis) synthesizer (based on wavetables?). The instrument has a row of 10 blue note key buttons to play own melodies or to select built-in melodies.


main features:

• 10 key buttons to play monophonic melodies (no semi- tones)
• 5 quasi- OBS animal voice sounds {duck, cat, sheep, dog, cow} (selected by re-inserting detachable, animal- shaped plastic blocks) and a guitar- like electronic sound (default when switching on) to play melodies.
• 10 built-in monophonic OBS melodies.
• 5 OBS steam locomotive sounds.
• very gritty sounding monophonic wavetable or LPC (speech synthesis) sound generator. The animal voices sound rather like imitated by a human voice than genuine samples and are very unique. The CPU (Texas Instruments CSM 10025AN, LU9021, 70314   PHILLIPINES) has a 16 pin DIP case (no black blob/ COB).
• Senso/ Simon- like audiogame in which a longer getting sequence of different animal sounds must be memorized and re-played using the red buttons. (After start, red buttons select difficulty; left button is easiest, right button is most difficult.)
• Rotary switch selects between "NORMAL" (organ), "MEMORY" (audiogame) and "AUTOMATIK" (music box) mode.
• after switching on, a locomotive sound is played. Switching on or selecting a new mode always plays one of 3 short guitar tunes corresponding to the actual mode. Switching off plays a short beep.
• crystal clocked

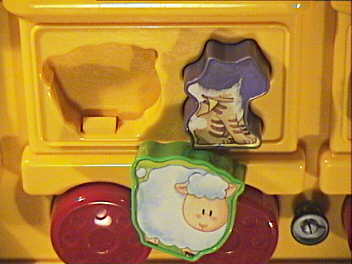

The sounds are selected by inserting these animal- shaped blocks.

eastereggs:

• Shitshooting makes the sound CPU play strange, stuttering noise/ voice fragments and lots of other strange sounds.
• Pressing "on" and "off" button too fast in sequence or simultaneously can crash the CPU and make the toy stop responding on any button presses until batteries are re-inserted. (I don't know if this is the normal behaviour or just a defect of my specimen; for a children toy this is a really severe flaw - it also may empty the battery rapidly so far the crash prevents correct auto- power- off.) Sometimes the "on" button needs multiple presses to respond properly.
• When I bought the instrument on a flea market, it was rained extremely wet (even under the silicone key mats) and though caused some very strange crash sounds. (E.g. it played the steam locomotive envelopes with an animal voice timbre, or played very long, sustaining tones and much other weird stuff.)

modifications:

• cinch output, speaker mute switch and volume control added.
• reset button, shitshot potentiometer and a switch to bypass the latter added (all inserted in CPU supply voltage line).

notes:

The gritty animal voices have a very unique, well recognizable timbre and can be played on the key buttons. Due to the quite long train sounds can be shorted by pressing a key and vice versa, this instrument is very interesting for experimental music. Particularly the cat sounds really great and somewhat eerie. Unfortunately notes can not be shorted by the reset button, because the toy always plays its lengthy start-up tunes when re-powered on.

The shitshot potentiometer makes the sounds crash in very strange ways when the CPU supply voltage line is turned down; e.g. sounds with randomly changing timbres appear, or the program crashes into loops of very weird tekkno noises or random note sequences. Some sounds resemble quickly turning a shortwave radio's tuning knob, others sound similar like lion roar or bizarre alien burp voices. Although the kind of sounds roughly corresponds to the actual shitshot knob position, they behave quite randomly and often end in a total lockup that can only be exited by the reset button, therefore this feature is not well suited for life musics. But used as a sampling source the shitshot can enrich musics with many unusual granular sounds. Shitshot effects can be achieved also by shortly bouncing the reset button. The pot bypass switch serves mainly the purpose of quickly switching the instrument between normal and shitshot mode without necessarity to change the knob position, because after a lockup the reset button often needs to be pressed in normal mode to restart the instrument again, but the switch can be used for shitshooting too.

I guess that the reduced supply current from the shitshot pot causes the CPU to mis- address its internal ROM and this way select wrong ROM sounds and sometimes even fill the registers of the synthesizer with random values and though cause completely different timbres. (Like an FM soundchip this thing can do a giant variety of timbres, despite the instrument regularly uses only few of them. The timbres resemble somewhat physical modelling of acoustical noises - e.g. it can make rough and ringing  metallic bell sounds, bottle blow noises, hollow drum sounds or things those sound like slurping and/ or burping into a lemonade can. Unfortunately everything is single- chip, thus there are no regular ways to access its synthesizer part from outside. But the timbres resemble also very much the grainy speech and noise effects of older toy laptops. (Hacking one of the latter would be certainly possible because they support external ROMs. LPC speech chip simulations are also included in the MAME arcade emulator, though such sounds can likely be produced simply in software on PC by using parts of the MAME source code. I am sure that these old LPC soundchips have a lot of musical potential and can also produce a great variety of much different sounds and not just replay the usual grainy speech they were invented for.)
