Bontempi Concertino 25S, Barbie Concertino 25, Concertino C25/N

Bontempi Concertino

polyphonic mini-keyboards without rhythm

Concertino 25S
Barbie Concertino 25
Concertino C25/N

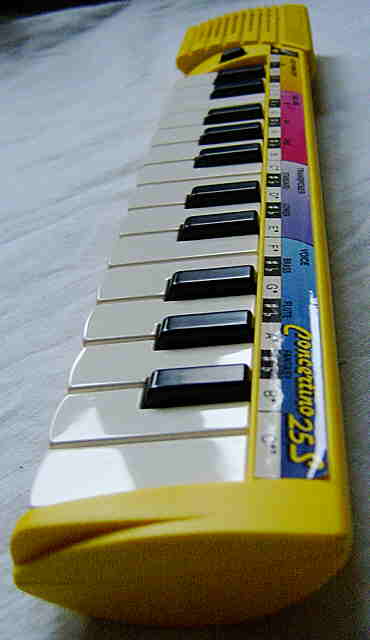

Bontempi Concertino 25S

This rare Bontempi mini- keyboard is 2 note polyphonic with 3 preset sounds those include a chorus/ phasing effect. The sounds remind to C64 timbres with a cheesy howling start and end. The keyboard range can be switched by 1 octave, but the short mini keys have an odd shape (like with the Hammond Solovox tube keyboard) and are not really responsive. There is no rhythm.

main features:

25 mini- keys (white keys are wider than normal)
built-in small speaker (with unpleasant midrange resonance)
2 note polyphonic main voice
all functions selected through black keys + select button
3 preset sounds {brass, flute, fantasy}
volume control (3 steps)
octave select (2 steps, mislabelled "transposer"}
sound generator based on squarewave with vibrato and chorus effect

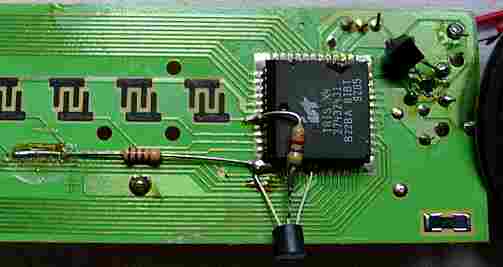

CPU= "IRIS X4, 27432431, B22BA BIBT, 9205" (44 pin SMD, crystal clocked)
auto power-off
no jacks

These stray discrete components belong there and were not added by me.

notes:

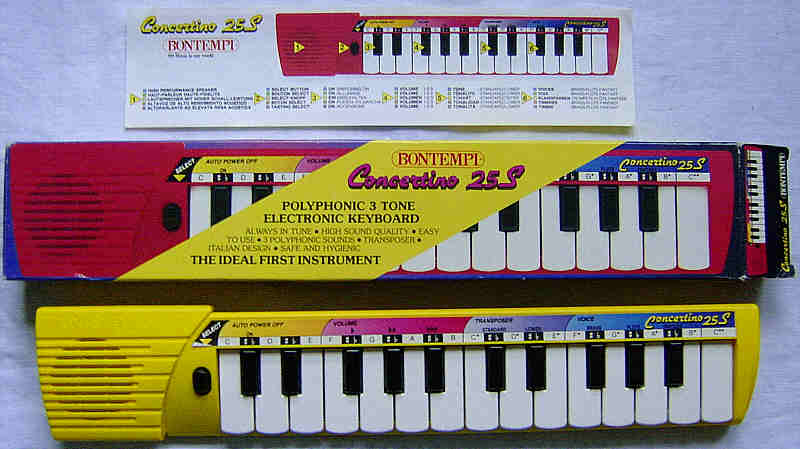

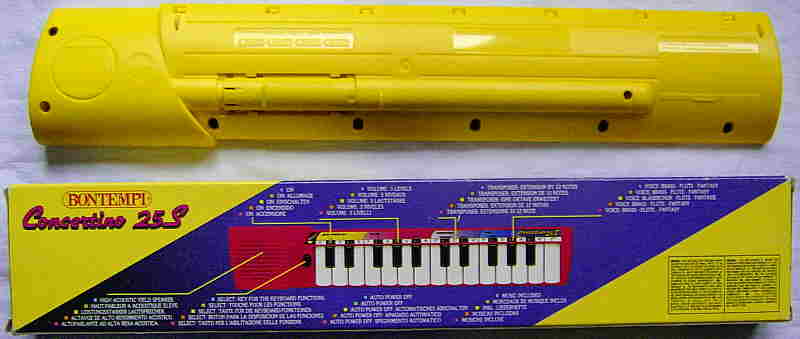

This instrument seems to be mechanically a variant of the hardware family of Bontempi B5, B20 and B40., while the preset sounds have a chorus effect like Bontempi ET 202. An unusual detail on the box writing is the claim "safe and hygienic", which apparently alludes to that this keyboard was designed to compete with those mouthpiece operated school melodicas; I still remember my nightmares of those loudly tooting Hohner snot boxes, those as a kid I found so disgusting that I refused to participate in the school musics lessons until my mother bought me a Casio VL-Tone 1. The Bontempi Concertino 25S seems to be very rare; at least on eBay I never saw another specimen yet. Unfortunately there is nowhere a hint when it was made (but my Barbie Concertino 25 has a copyright label from 1993) . Odd is that the case bottom has an embossed "NAME" field to write the owner's name on; apparently it was particularly designed for school use.

The "brass" preset sound resembles rather a violin with 6Hz vibrato and percussive attack phase and a tiny bit of sustain. "flute" is a flute or clarinet sound with mild chorus effect and mild vibrato; the bass range resembles a wooden pipe organ rank. "fantasy" is a squawky woodwind timbre with percussive attack, that resembles bagpipes and includes a phasing effect that cycles thinner and fuller with about 0.5Hz. The pitch of all 3 preset sounds howls up a bit during attack, and down a bit after key release, which gives the sounds a special cheesy appeal. I am not sure if this is a software feature or caused by battery voltage changes, not least since the crystal clocked CPU theoretically should prevent this; Bontempi even advertised this thing to stay always in tune.

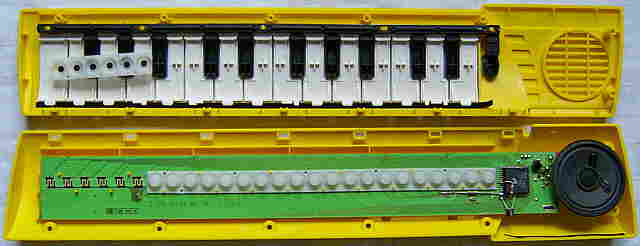

Unusual is also the polyphonic keyboard scanning algorithm, which always plays on the 1st channel the leftmost pressed key and on the 2nd channel the rightmost pressed key, while it ignores all keys in between. This behaviour is normally only known from historical analogue synthesizers without digital CPU. The keyboard also has no matrix but connects all key contacts to the same line, thus possibly the single main IC contains a much older, semi- analogue hardware design with a couple of additional flipflops instead of a genuine software controlled digital CPU, and also the howling tones may have to do with this. (Another small keyboard with bizarre keyboard scanning technology is the Ramasio 892.)

A direct successor of this instrument was the Bontempi Concertino 32S (with 32 midsize keys, 8 preset sounds, metronome). Another (older) Bontempi mini keyboard with roughly similar features like the 25S was the Bontempi Basic BK32.

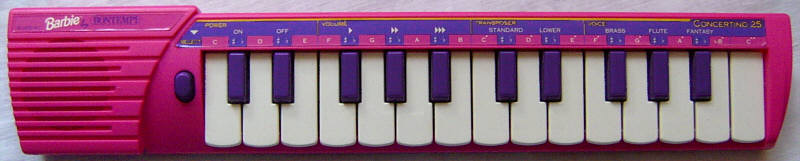

Bontempi Barbie Concertino 25

A pink variant of the Concertino 25S was released with the label ©1993 M.I. as Barbie by Bontempi - Concertino 25. It has violet sharp keys, a different battery cover (that tends to fall off), an additional sticker field above the speaker, and at least my specimen has a stronger and more square sounding vibrato.

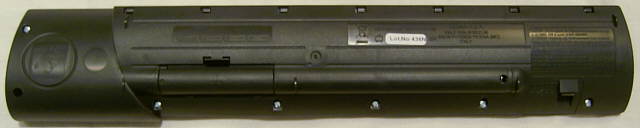

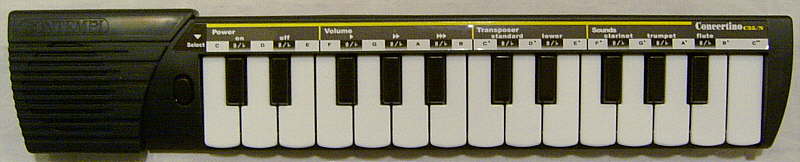

Bontempi Concertino C25/N

This black Concertino 25S remake was apparently released in 2007 (song copyright dates in manual). Unlike its predecessor, its different 3 preset sounds are based on high resolution samples. Unfortunately a polyphony bug truncates held notes during fast play and so makes it inferior.

different main features:

different 3 preset sounds {clarinet, trumpet, flute}
sample based sound generator with split zones

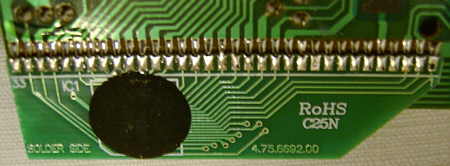

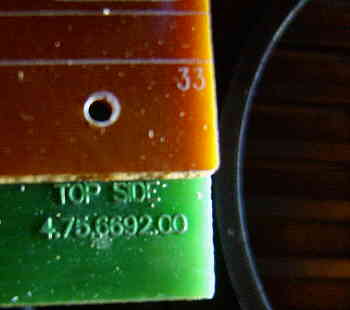

CPU="RoHS C25N, 4.75.6692.00" (33 pin COB)
AC-adapter jack

notes:

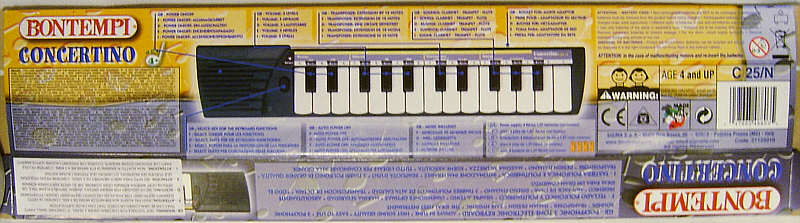

The main voice is made from fairly realistic high resolution samples with several (about 4) spit zones and delayed 6Hz vibrato. The 'flute' sounds like a recorder one. The power switch plays a clave for 'on' and a wooden click for 'off'. On the new box is still mentioned (in small letters) the ancient spit-age statement "safe and hygienic".

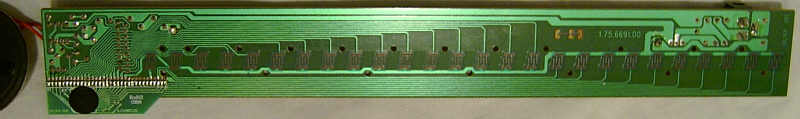

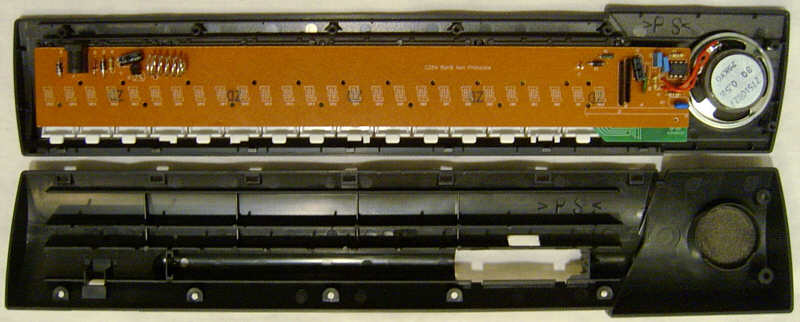

Strange is that inside my specimen one of the 2 brown rubber key contact strips is one contact too long and so protrudes over the end of the PCB. Unlike the predecessor, the keyboard scanning algorithm here simply plays the notes of the 2 last pressed keys when holding down more than 2. (I haven't examined the hardware closer yet.)

eastereggs:

Holding any 1 key during battery insertion makes that note sound only for 1/3s, then it stops and the instrument locks up.
Holding multiple keys during battery insertion makes 2 of their notes get stuck while the instrument locks up.
After shitshot (battery wiggling) the instrument sometimes goes into a bizarre theremin mode. While the keys stop responding, it rapidly plays random notes when you only hover your fingers near the keys without(!) touching. I assume that the CPU here disconnects power to internal key matrix pullup resistors at the input lines (normally used during standby to save battery?) and so makes them pick up mains hum and other EMC noise from your hands.

*removal of these screws voids warranty...*
